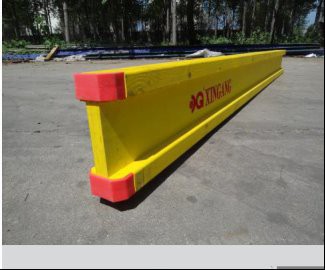

H20-BEAM

H-BEAM,

FOR CONSTRUCTION USE,CARRY FILM FACED PLYWOOD

STANDARD H-20 MODEL

WEIGHT:4.8KG PER RUNNING METER

BENDING MOMENT-MAX:5kN/m

SHEAR FOCRE-MIN:11.0KN

BENDING-MAX:1/500

LIVE LOAD(BENDING STIFFNESS):1.5KN/M2

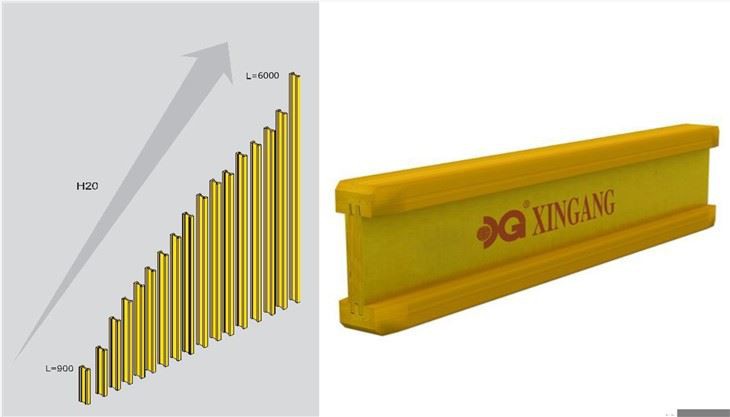

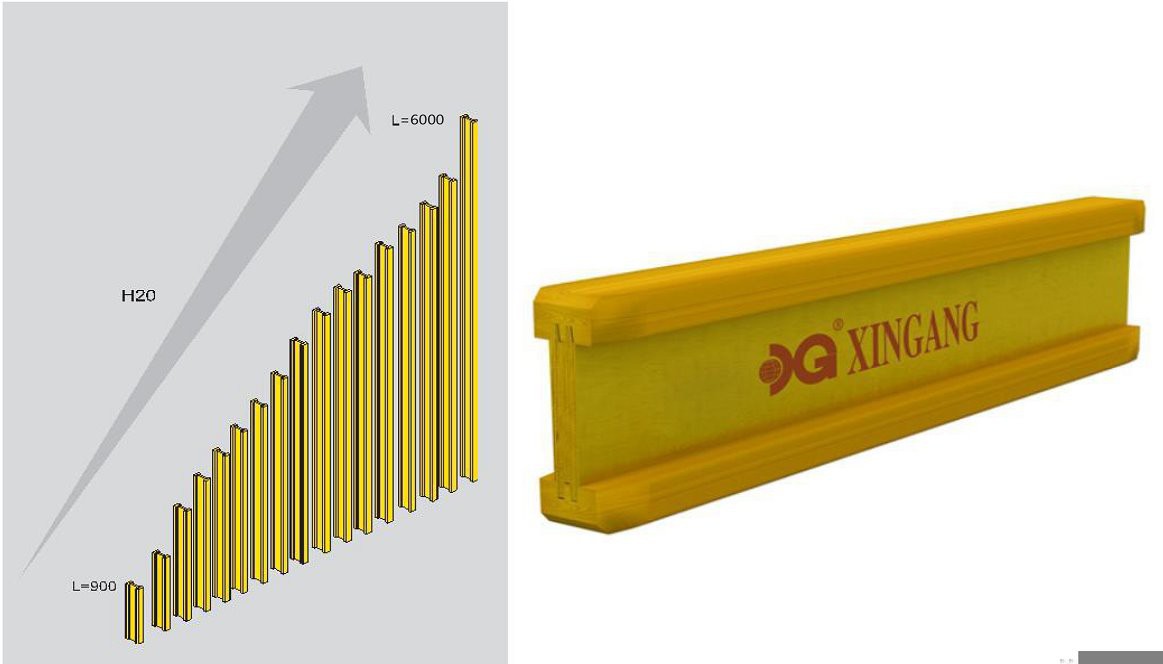

LENGTHE:1.9M-5.9M

STANDARD SIZE:20CM(HEIGHT)X8CM(WIDTH)X4CM(FLANGE THCIKNESS)X27MM(WEB THICKNESS)

FLANGE:SAWED-PINE OR SPRUCE,WEB:BIRCH OR POPLAR OR LARCH PLYWOOD AS WEB.

TREATED BY WBP GLUE EXTERIOU USED WEATHER&WATER-PROOF

COATED BY ANTISEPTICE&WATER-PROOF YELLOW PAINTING
