Product Description：

Container homes are mobile, reusable building products. The product adopts standardized design and factory production, and takes a box as the basic unit, which can be used alone, or can form a spacious use space through different combinations of horizontal and vertical directions. Prefabricated houses can be divided into folding container houses, assembled container houses, flat-pack container houses, etc.

Characteristic：they can be disassembled and assembled freely, which is convenient for transportation and movement. Prefab houses are suitable for placement on hillsides, hills, grasslands, deserts and rivers. Without taking up space, the mobile home is stable and durable, and looks good. Designed according to customer requirements, beautiful and generous, good thermal insulation performance, typhoon resistance, comfortable and warm life, very suitable for construction site personnel to live. We use high quality galvanized sheet and foam as the material of wall and roof, so prefab house is very suitable for fireproofing, waterproofing, etc.

1. Each container house in 5800*2500*2896(inside:5620*2410*2575)mm
2. Floor live load:2.0 KN/sqm; roof live load:0.5 KN/sqm; wind load: 0.6 KN/sqm; seismic grade: 8 degree;
3. steel structure: galvanized steel pipe, 2.5mm, Q235, Z50
4. roof : 0.5mm steel sheet+75mm glasswool+0.5mm steel sheet
5. Floor: 18mm Cement fibre floor&2.0mmPlastic floor
6. Wall: 75mm glass wool sandwich panels, 0.4/0.4mm(outside/inside)
7. Door: 850*2030mm, a steel door with Anti-theft poles and screens. Window: 950*1100mm, alloy aluminum frame window,Hollow glass

Main Steel Frame
Main steel Frame	Galvanized special-shaped steel 2.5mm
Column	Galvanized steel strip forming 2.5mm thickness
Horizontal steel beam	Steel tube 1.5mm thickness
hanging head	Patent steel connections,Galvanized
Painting	Powder coating
Roof and wall
Wall panel	Rock wool sandwich panel 50kg/m3 density
Roof tile	Top steel plate 0.8mm thickness
Edge Cover	Galvanized color steel cover, angle
Fasteners & Accessories	Screw, pop-rivet, bolt, glue, etc.
Ceiling and Flooring
Ceiling	Glass wool,PE film,color steel sheet , butyl tape
Floor	Fiber cement board
Floor feather	1.0mm or 1.5mm Plastic flooring
Door	Security door or sandwich panel door
Window	PVC/aluminum window with/without flying screen
Water and Plumbing System:PVC Pipe
Electrical System:switch, circuit protector, wiring, tubing,etc
Lighting:LED light
Sanitary equipment and kitchen can be customized according to requirements

1.Fast Production

most of the parts are automaticly made by machine,production is fast,one day can produce 30 units

2.Special Bolt Connection Design

1)easy for installation:two workers will install one house in 8 hours

2)take less space in container:for only the frame,one 20ft container can load 25 units,one 40HC container can load 50 units

for full house with one door,two windows,wall,roof,floor,one 20ft container can load 5 units,one 40HC container can load 12 units

3)don't ned crane for installation

3.Galvanized Grame+Powder Coating

Hard to get rusted

4.Can Be Combined To Make A Big Room

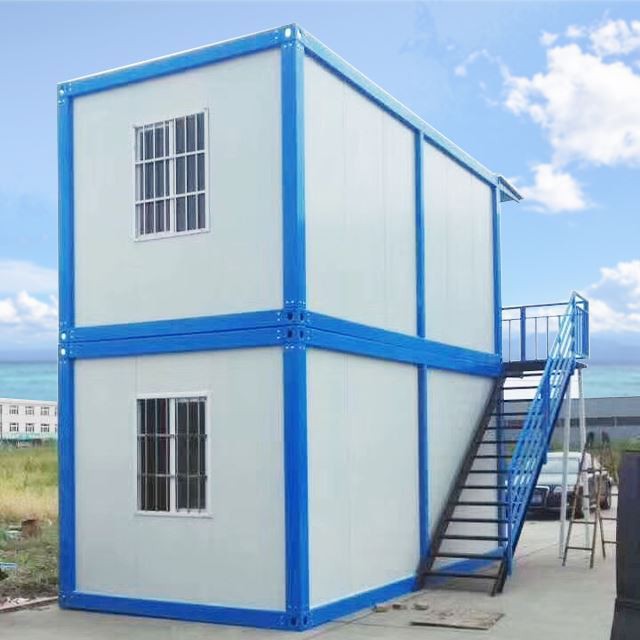

5.Can Be Stacked 2-3 Levels

6.Special Package Way

almost all of the suppliers will load the parts of prefab house pieces by pieces in container.the sandwich panel is easy to be damaged. we weld steel pallet on bottom,and wrape plastic film all around to protect the materials

7.detailed specification for materials
